GEPRC Cinelog25 V2 HD Wasp FPV Runcam Link Peano 5.8G LHCP UFL BNF Video Freestyle RC GPS Mini Quadcopter Drone Racing Kit

$840.77 USD

~~$0.00 USD~~ $840.77 USD

Sale Sold out

Color GPS PNP GPS TBS Nano RX TBS Nano RX ELRS 2.4G PNP GPS ELRS 2.4G

Quantity

Summary

From progress to evolution, a comprehensive reconstruction of the previous generation of design. Finally we come to the Cinelog25 V2 version.

This upgrade of Cinelog25 V2 has launched three video transmission versions, the most important of which is the O3 Air Unit video transmission version. Based on the O3 Air Unit's built-in anti-shake requirements for fuselage shock, the Cinelog25 V2 can achieve excellent anti-shake effects by matching the camera damping ball.

It is redesigned to be fixed with aluminum parts and cable ties, which is convenient for battery replacement. The flight system uses the new TAKER G4 35A AIO with 1404 4500KV motors and HQ DT63mmX4 propellers for excellent flight performance.Install the propeller guard which can effectively prevent people from being injured due to flight mistakes.Equipped with GPS M10 chip, quickly search for satellites.

Cinelog25 V2 is a 2.5-inch high-definition FPV that integrates indoor and outdoor flying. Developed by the GEPRC team,the flight feels delicate and the experience is good.

Feature
1. Add 03 Air Unit image transmission version.ultralight weight within 250g,Fit with FAA flight standards

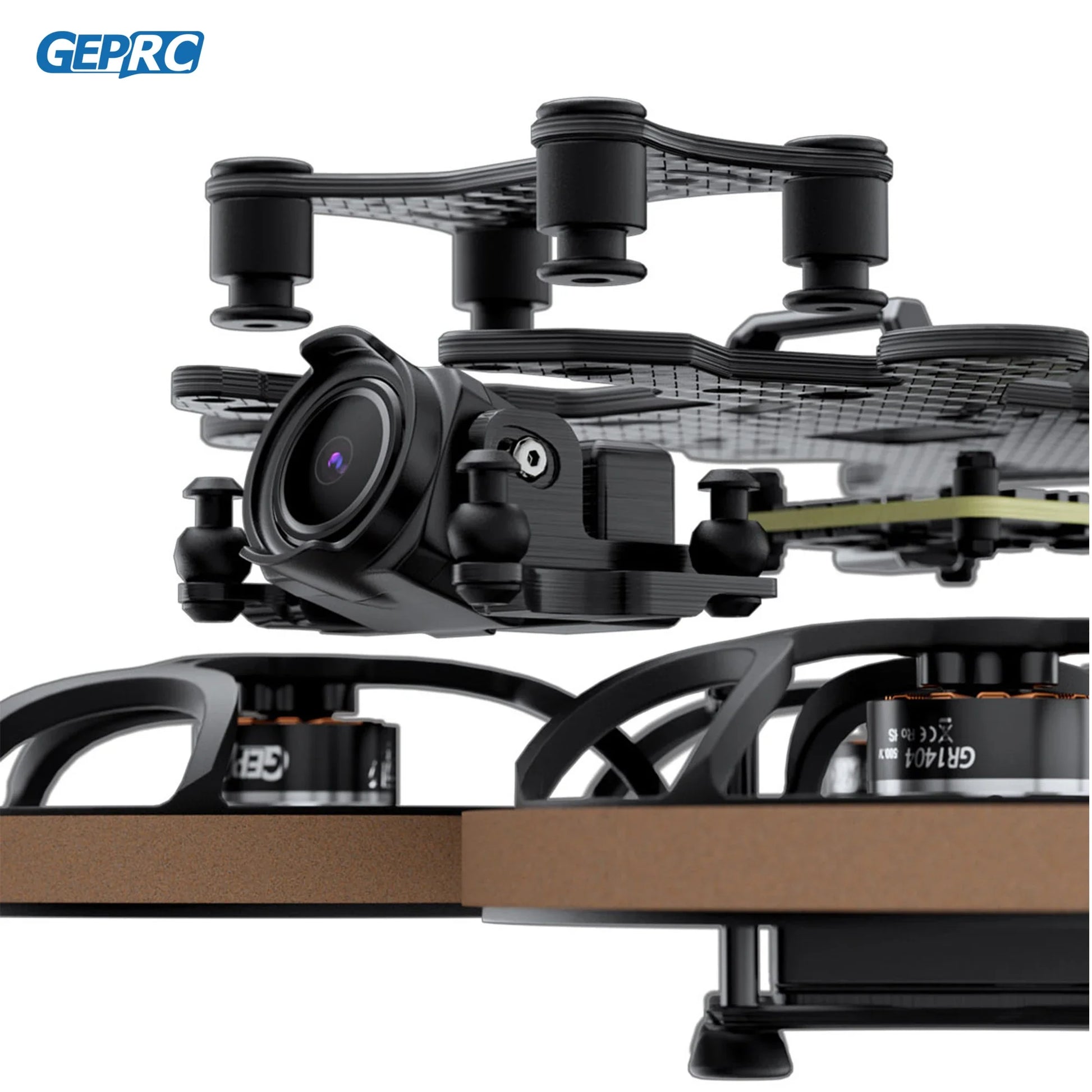

2. The 03 cemera design isindependenty attached to the shock-absorbing gimbal to solve the camera lMU reonance problems and achieve the best video ant-shakeeffect.
3, Desianed aluminum parts with cable ties to facilitate the change of batteries
4. Use the new TAKER G4 35A Al0, has better computing power.ESC over-current protection makes it stable and reliable
5. Design propeller guard, which can effectively prevent people from flight mistakes
6. The fuselage is small and compact, suitable for indoor and outdoorMounting Naked GoPro8 to shoot beautiful videos.Specifications
7.Model:Cinelog25 V2 HD Wasp Quadcopter
8. Frame: GEP-CL25 V2
9.Wheelbase: 114mm
10. Gimbal plate: 2.0mm
11. Top plate: 2.5mm
12. Bottom plate: 2.0mm
13. FC system: TAKER G4 35A AIO
14.MCU: SMT32G473CEU6
15.Gyro:ICM 42688-P
16.OSD: Betaflight OSD W/AT7456E
17.ESC: 8Bit 35A
18.VTX: Runcam Link
19 Camera: Runcam Wasp
20. Antenna: GEPRC Peano 5.8G LHCP UFL
21.Motor: SPEEDX 1404 4500KV
22. Propeller: HOProp DT63mm*4
23.Cinelog25 V2 HD Wasp PNP weight:167g+5g
24.Receiver: PNP(built-in Link receiver) / GEPRC ELRS24 / TBS Nano RX
25.Recommended battery:LiPo 4S 660mah-850mah
26.Flight time: 4′00″ -6′ 00″
